Kayak Series names
To avoid any possible confusion about kayak models when looking at photos etc - all Neris hybrid folding kayaks (EG Smart / Smart PRO) have a Series logo on the front side deck and all Neris folding kayaks (Alu / Valkure) have a Series logo on the rear deck.
EG - you will only see "NERIS SMART PRO" on all three Smart PRO models
Inquiries
No matter which country you are based in, do contact
us with your queries. Prices are linked to the Euro - we will provide quotes
in your preferred currency if not based in the UK. If there is already a NERIS dealer in your country, we will re-direct your query to them
Ordering
When you would like to order, contact us and
we will provide up to date quotes. We will also send you an invoice with relevant
payment details etc.
Or if you need advice etc, we are more than happy to help
with your
queries.
|
Looking to replacing the skin for your Pouch RZ85 or old Russian made kayaks?
Speak to us about a replacement skin for your German
made Pouch RZ85-3 or old Russian Saliut/ Taimjen kayaks
Looking for something?
If you are looking for something
that is not listed on our website please give us a call or email
us.
NERIS
NERIS products are all made in Europe, using European / USA made materials
and high grade German welding machines.
3-5 year warranty on all NERIS products (domestic usage)
Important Notice
It is your responsibility to ensure that you have a valid license
/ permission from the relevant authorities to
use water craft on UK's waterways, rivers, lakes, etc. Not all inland
water is open to paddlers, some access points / rivers are privately owned
or is bounded by
land which is private, so do check beforehand. Membership of a
canoe union / club is very beneficial.
|
NerisUK
|
|
Technical
specifications
Details of materials currently used in the manufacture of NERIS
kayaks
Folding kayaks - Alu & Valkure Series
Hybrid folding kayaks - Smart & Smart Pro Series
Folding kayaks - Alu & Valkure Series
 |

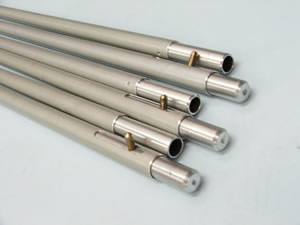

Longitudinal
frame members - Alu & Valkure Series kayaks
The stringer set is made of an anodized duralumin tube D16T
(DIN 2024), manufactured by “ALCOA” – a
leader in aluminum alloys. This robust type of alloy grade
is typically used in aircraft. |
 |

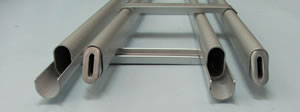

Keel
bar - all kayaks
The keel bar is made of a profiled oval tube, 20 x 35mm. This
tube ensures enhanced stiffness against vertical bending.
Additionally,
due to the high profile of the tube (35mm), this ensures that
there is sufficient gap between the kayak skin and the cross
ribs
and other key frame members - to avoid potential damage to
the skin when hitting underwater objects. |
 |

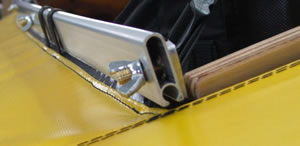

Washboard - Alu & Valkure Series kayaks
The washboard coaming is specially manufactured with a unique
profile designed by NERIS. This design is based on sailing
mast tracks and is used to grip the PVC deck securely to
the washboard. The washboard is easy to install, and also
provides structural strength and rigidity to the kayak
frame. |
 |

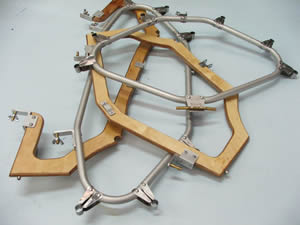

Cross
ribs - all kayaks
NERIS uses two different types of cross ribs:-
- Alu Series kayak cross ribs are made
of duralumin tube D16T, diameter 18mm, with stainless
steel stringer supports.
- Smart Series cross ribs
are made
of duralumin tube D16T, diameter 18mm
- Valkure Series kayak cross ribs are made
of 11 layer laminated moisture proof birch plywood
typically used in the yacht-building industry. The cross
ribs are treated with
a special impregnation 1st coat, and then is coated with
three layers of marine varnish made by Tikkurila (Sweden).
The aesthetic look and natural warmth of wood are the key
features of NERIS kayaks.
|
 |

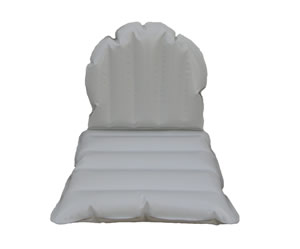

Seats
Since the spring of 2008, all NERIS kayaks are fitted with
inflatable seats "Airseat".
These seats have been highly regarded by our clients. The
seats feature straps on the underside for reliable and secure
attachment to the keel bar of the kayak, and also has
side straps with provision for back rest
tilt adjustments. Additionally,
the inflatable
seats double up as buoyancy 'tanks' ensuring unsinkability
of the kayak.
The seats
are made of abrasive resistant PVC fabric and the twist valves
on the ends of the inflation tubes are made by Halkey-
Roberts (USA).
Alu & Valkure Series - inflatable back and bottom
Smart Series - inflatable bottom with padded back
|
 |

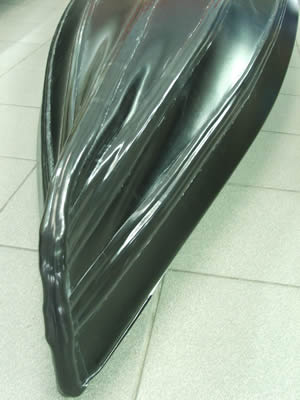

Skin
The kayak skin is made of two different grades of PVC fabric
- a density of 1050gsm for the hull, and 620gsm for the
deck.
These high-quality marine grade PVC fabrics are
made by
Mehler (Germany).
The hull has profiled rubber protector
strips fitted along all of the chines that are formed
by the stringers and keel bars. This serves to protect
the
PVC
skin itself when bumping or scraping against underwater
objects
The deck and hulls are available in various colors,
with the hull being available in black or cream, and
the deck in red, orange, yellow, blue, light blue, olive
green and grey as standard. Other
deck and hull colours are available on special request.
The
fabrics,
threads
and protectors
used in the
manufacture of the kayak skins are all resistant to moisture,
fungi and other aggressive factors.
|
Hybrid folding kayaks - Smart & Smart Pro Series
Kayak skins
|
PVC - Smarts / Smart Pro Series (Standard versions) - Hull - MEHLER PLASTEL 8820 900gsm fabrics
Product specifications for PLASTEL® BOAT | 8820 900gsm
| Material properties |
Value |
Unit |
Measuring Methods/Norm |
Remark |
| Total weight |
900 |
g/m² |
EN ISO 2286-2 |
|
| Thickness |
0,7 |
mm |
DIN EN ISO 2286-3 |
|
| Tensile strength warp/weft |
2800 /2900 |
N/50 mm |
EN ISO 1421/V1 |
|
| Tear strength warp/weft |
300 / 300 |
N |
DIN 53363 |
|
| Adhesion |
20 |
N/cm |
PA 09.03 (intern) |
|
| Cold resistance. |
-40 |
°C |
EN 1876-1 |
|
| High Temperature |
+70 |
°C |
PA 07.04 (intern) |
|
| Light fastness |
>6 |
Note, Value |
EN ISO 105 B02 |
|
| Crack resistance |
100000 x |
|
DIN 53359 A |
no cracks |
| Material |
PES |
|
DIN EN ISO 2076 |
|
| Yarn count |
1100 |
dtex |
DIN EN ISO 2060 |
|
| Weave |
L 1/1 |
|
ISO 3572 |
|
| Remarks |
|
| Type of coating |
PVC |
| Burning behaviour |
ISO 3795 <100 mm/min. |
|
PVC - Smarts / Smart Pro Series (LIGHT versions) - Hull - MEHLER PLASTEL 8820 750gsm fabrics
Product specifications for PLASTEL® BOAT | 8820 750gsm
| Material properties |
Value |
Unit |
Measuring Methods/Norm |
Remark |
| Total weight |
750 |
g/m² |
EN ISO 2286-2 |
|
| Thickness |
0,6 |
mm |
DIN EN ISO 2286-3 |
|
| Tensile strength warp/weft |
2800 /2900 |
N/50 mm |
EN ISO 1421/V1 |
|
| Tear strength warp/weft |
300 / 300 |
N |
DIN 53363 |
|
| Adhesion |
20 |
N/cm |
PA 09.03 (intern) |
|
| Cold resistance. |
-40 |
°C |
EN 1876-1 |
|
| High Temperature |
+70 |
°C |
PA 07.04 (intern) |
|
| Light fastness |
>6 |
Note, Value |
EN ISO 105 B02 |
|
| Crack resistance |
100000 x |
|
DIN 53359 A |
no cracks |
| Material |
PES |
|
DIN EN ISO 2076 |
|
| Yarn count |
1100 |
dtex |
DIN EN ISO 2060 |
|
| Weave |
L 1/1 |
|
ISO 3572 |
|
| Remarks |
|
| Type of coating |
PVC |
| Burning behaviour |
ISO 3795 <100 mm/min. |
|
TPU - Smarts / Smart Pro Series (LIGHT versions) - side sponsons (large air tubes) - EREZ TPU 2008, double sided TPU coated fabric
TPU 2008
|
TPU - Smarts / Smart Pro Series (LIGHT versions) - spray decks, lightweight version seats - EREZ TPU 1007A single sided TPU coated fabric
TPU 1007A
|
| |
| |
| |
| |
| |
| |
|
|
